Automatic Soil Compactor
৳ 495,000Original price was: ৳ 495,000.৳ 480,000Current price is: ৳ 480,000.Ask a Question
৳ 495,000 Original price was: ৳ 495,000.৳ 480,000Current price is: ৳ 480,000.
🏗️ Product Name:

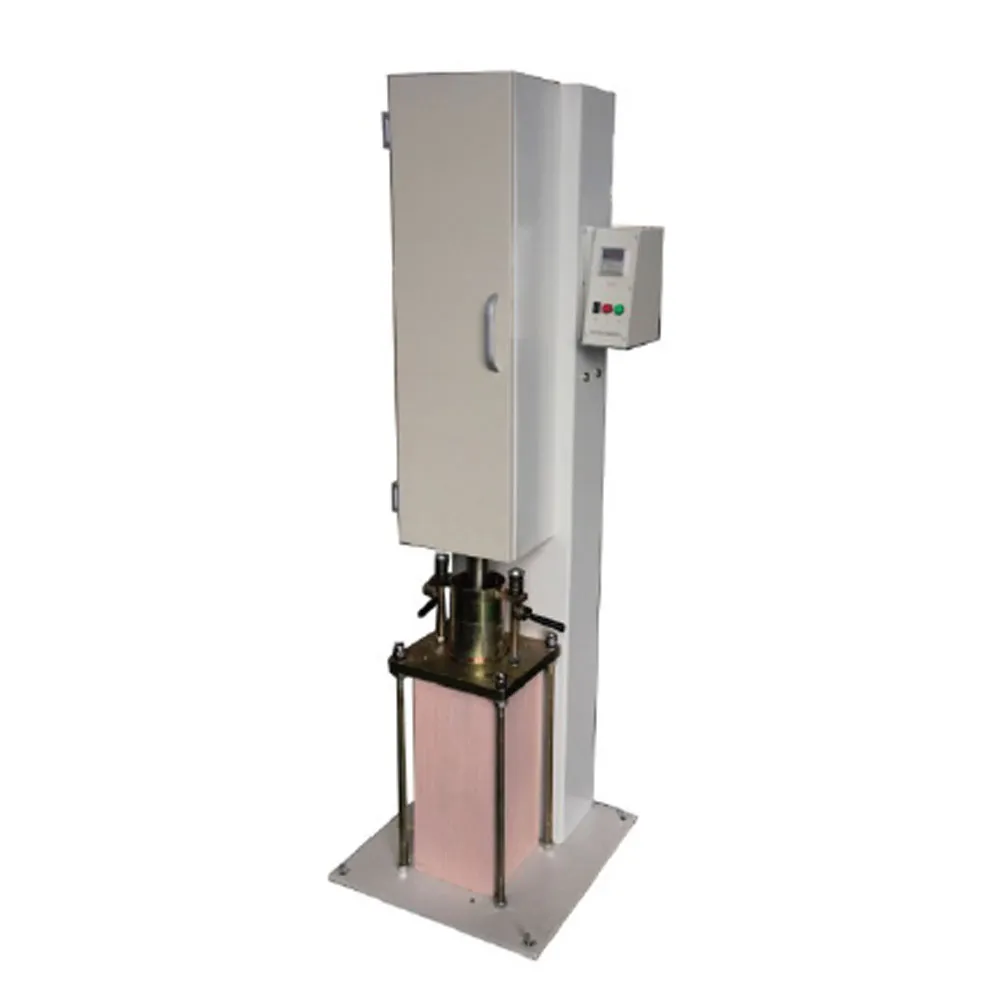

Automatic Soil Compactor
🖋️ Short Description (for product listing):
Automatic Soil Compactor designed for consistent and efficient compaction of soil samples in laboratories according to standard test methods such as Proctor and Modified Proctor tests.
📄 Full Product Description:
The Automatic Soil Compactor is a precision-engineered laboratory instrument designed to compact soil samples automatically with controlled blows and uniform energy. It eliminates human error in manual compaction and ensures repeatable test results for soil density and moisture content analysis.
This equipment is ideal for geotechnical, civil engineering, and construction laboratories conducting soil compaction tests under Standard Proctor and Modified Proctor methods.
⚙️ Features:
✅ Automatic operation for precise and uniform compaction
✅ Adjustable blow count and drop height
✅ Compatible with both 100 mm and 150 mm diameter molds
✅ Programmable control panel with safety interlock
✅ Strong and durable frame construction
✅ Conforms to ASTM D698, ASTM D1557, BS 1377 standards
📐 Technical Specifications:
| Parameter | Specification |
|---|---|
| Drop Height | 305 mm or 457 mm (selectable) |
| Hammer Weight | 2.5 kg (Standard) / 4.5 kg (Modified) |
| Mold Diameter | 100 mm / 150 mm |
| Number of Blows | Adjustable up to 55 per layer |
| Compaction Layers | 3 or 5 (programmable) |
| Power Supply | 220 V AC, 50 Hz |
| Construction | Heavy-duty steel frame |
| Standard Compliance | ASTM D698 / D1557, BS 1377 |
🧪 Applications:
-
Soil density and moisture relationship tests
-
Geotechnical soil compaction research
-
Civil and construction material testing
-
Road base and embankment material evaluation
Application: It is designed according to railway project and civil test standard. It is used to determine the relations between the water content and dry density by standard compaction, to find best water content and max. dry density of soil. It adopts intelligent controller, can both do heavy compaction and light compaction, it is easy operation, skillful structure, stable working. It is suitable for the field geotechnical test in the laboratory.
- II. Technical parameter:
- Heavy compaction: Weight of the hammer: 4.5KGS, Fall height: 457mm.
- Light compaction: Weight of the hammer: 2.5KGS, Fall height: 305mm.
- Diameter of the cylinder Mould: ¢100mm and ¢152mm
- Diameter of the hammer head: ¢51mm
- Compaction frequency: 30 times/minute
- Motor speed: 1440RPM
- Setting time: 0-99times
- Power: 500W
Manual for SC-A100-152 Automatic Soil Compactor
DownloadBrand: SC-A100-152 Brand: Citivest Manufacturer Country : China
