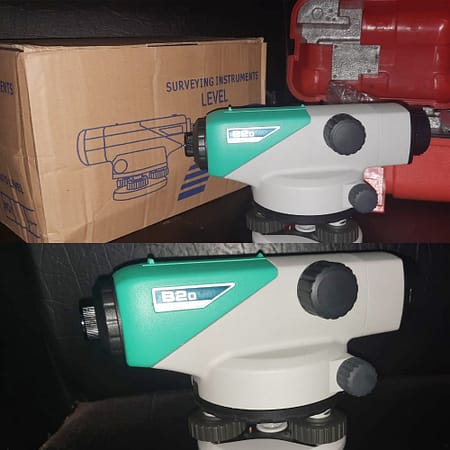

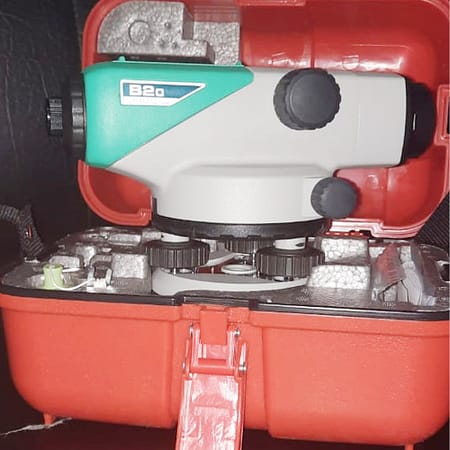

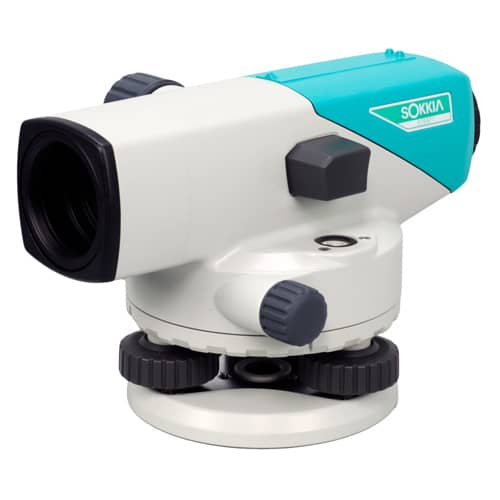

Automatic Leveling Machine, B20, Sokkia, Japan

৳ 40,000.00

Auto leveling Machine

Brand : Sokkia
Model : B-40
Manufacturing Country : China
Country of origin: Japan

Accessories:

Stander Tripad -1 nose
5 meter Leveling Staff
Stander Box

Automatic Leveling Machine, B20, Sokkia, Japan
৳ 40,000.00
Request a Call Back
Country

Your Email (required)

Phone Number (required)

Call SMS WhatsApp
Size Guide
Size Guide
DRESSES

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.

T-SHIRT

Size Chest Waist Hips

2XS 32 26 32

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

All measurements are in INCHES

and may vary a half inch in either direction.

BOTTOMS

Size Chest Waist Hips

XS 34 28 34

S 36 30 36

M 38 32 38

L 40 34 40

XL 42 36 42

2XL 44 38 44

All measurements are in INCHES

and may vary a half inch in either direction.
Delivery & Return

Delivery

We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.

Return

Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

Help

Give us a shout if you have any other questions and/or concerns.
Email: contact@mydomain.com
Phone: +1 (23) 456 789
Ask a Question
Automatic Leveling Machine, B20, Sokkia, Japan
৳ 40,000.00
Ask a Question
Your Name (required)

Your Email (required)

Phone Number

Your Message (required)

... people are viewing this right now

Guaranteed Safe Checkout Trust

Description

PRODUCT SPECIFICATIONS

	B20	B30	B40
Telescope
Length	215mm(8.46in.)	214mm(8.42in.)	214mm(8.42in.)
Magnification	32X	28X	24X
Objective Aperture	42mm(1.65in.)	36mm(1.42in.)	32mm(1.26in.)
Resolving Power	3”	3.5”	4”
Field of View	1°20‘(2.3m/7.5ft)	1°25‘(2.5m/8.2ft)
(at 100m/328ft)
Minimum Focus	0.2m(7.9in.)from end of telescope 0.3m(1ft)from instrument center
Image	Erect
Stadia Constant	0
Stadia Ratio	100
Focusing Knob	2-speed	1-speed
Sighting Aid	Peep Sight		Gun Sight
Accuracy (1km double runleveling)
Without Micrometer	0.7mm(0.03in.)	1.5mm(0.06in.)	2.0(0.08in.)
With Micrometer	0.5mm(0.02in.)	N/A
Compensator
Type	Pendulum Compensator With Magnetic Damping System
Setting Accuracy	0.3”	0.5”
Working Range	±15’
Circular Level
Sensitivity	10‘/2mm
Horizontal Circle
Diameter	103mm(4.1in.)	99mm(3.9in.)
Minimum Division	1°/1gon
General
Water Resistance	IPX6(IEC 60529:2001)
Operating Temperature	-20 to +50℃(-4 to +122°F)
Width	130mm(5.12in.)	122mm(4.8in.)
Length	215mm(8.46in.)	214mm(8.4in.)
Height	140mm(5.51in.)
Weight	1.85KG	1.5KG

Auto level

Auto level survey instruments are an essential tool used in land surveying to measure the height of different points on the surface of the earth relative to a reference point. These instruments are designed to make the process of measuring height more efficient and accurate, by automatically compensating for any misalignment or tilting of the device during use.

Auto level survey instruments are comprised of a telescope that is mounted on a tripod. The telescope is designed to rotate horizontally and vertically, which allows for greater flexibility in measuring the height of different points. The instrument also contains a leveling bubble, which helps to ensure that the device is perfectly level before any measurements are taken.

One of the key benefits of using an auto level survey instrument is that it eliminates the need for manual calculations and adjustments, which can be time-consuming and prone to errors. Instead, the device automatically adjusts for any errors or misalignments that may occur during use, which ensures that the measurements are highly accurate.

In addition to their accuracy, auto level survey instruments are also known for their ease of use. They are designed to be simple and intuitive, which means that even those with limited experience in land surveying can quickly learn how to use them effectively. This makes them a popular choice for a wide range of applications, including construction, engineering, and land development.

Overall, auto level survey instruments are an essential tool for anyone involved in land surveying. They provide a high level of accuracy and efficiency, which can help to save time and improve the quality of the measurements taken. Whether you are a professional surveyor or simply looking to measure the height of a plot of land, an auto level survey instrument is an investment that is well worth making.
