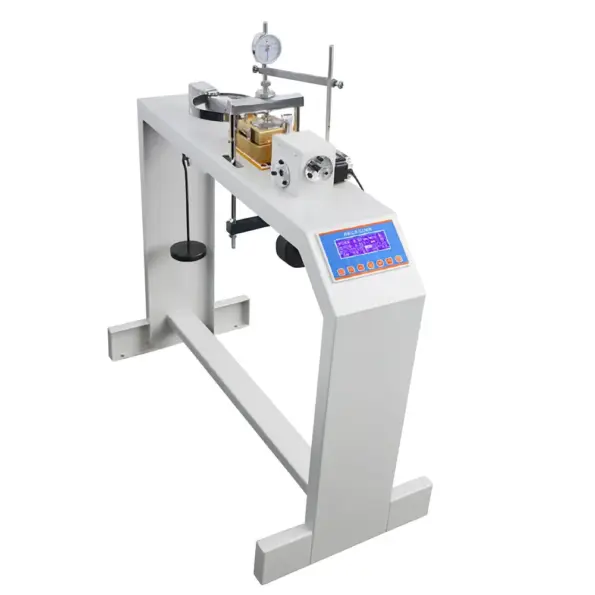

Digital Soil Direct Shear Apparatus

৳ 800,000.00

Digital Soil Direct Shear Apparatus

  • Model:: ASTM D3080
  • Designs : Popular design
  • Manufacturing Country :: China
  • Iporter :: Rahim Trading Corporation
+
  • Key Feature. ♦ Applicable standards

    Digital Soil Direct Shear Apparatus

    ৳ 800,000.00

    Request a Call Back

    •   Size Guide

      Size Guide

        Size Chest Waist Hips
        XS 34 28 34
        S 36 30 36
        M 38 32 38
        L 40 34 40
        XL 42 36 42
        2XL 44 38 44

        All measurements are in INCHES

        and may vary a half inch in either direction.

        Size Chest Waist Hips
        2XS 32 26 32
        XS 34 28 34
        S 36 30 36
        M 38 32 38
        L 40 34 40
        XL 42 36 42

        All measurements are in INCHES

        and may vary a half inch in either direction.

        Size Chest Waist Hips
        XS 34 28 34
        S 36 30 36
        M 38 32 38
        L 40 34 40
        XL 42 36 42
        2XL 44 38 44

        All measurements are in INCHES

        and may vary a half inch in either direction.

      •  Delivery & Return

        Delivery

        We ship to all 50 states, Washington DC.
        All orders are shipped with a UPS tracking number.
        Always free shipping for orders over US $200.
        During sale periods and promotions the delivery time may be longer than normal.

        Return

        Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

        Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
        Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

        Help

        Give us a shout if you have any other questions and/or concerns.
        Email: contact@mydomain.com
        Phone: +1 (23) 456 789

      •  Ask a Question
        Key Feature. ♦ Applicable standards

        Digital Soil Direct Shear Apparatus

        ৳ 800,000.00

        Ask a Question

          ... people are viewing this right now
        Compare
          Share
        Guaranteed Safe CheckoutTrust

        Key Feature.

        ♦ Applicable standards: BS 1377; EN 1997-2; ASTM D3080
        ♦ Microprocessor control
        ♦ Rapid approach and return to start datum
        ♦ Fully variable speed, up to 9.99mm/min
        ♦ Reduced operator involvement
        ♦ Direct entry through keyboard
        ♦ Direct reading in engineering units
        ♦ Modular transducer system

        ♦ Compatible with shear boxes up to 100 mm diameter or square
        ♦ USB pen drive for unlimited storage capacity and TXT format data output
        ♦ Optional PC control via LAN port and dedicated software
        ♦ Sturdy shear box techno-polymeric carriage untouchable by corrosion
        ♦Adjustable speed and travel (forward and reverse) for residual shear test
        ♦ Number of cycles adjustable from 1 to 99
        ♦ Specific and independent data recording for consolidation and failure stages
        Technical Parameters
        Maximum vertical load (KPa)
        400
        Pressure level (KPa)
        50,100,200,300,400
        Corresponding weight weight (KPa)
        1.275,2.55,5.1,7.65,10.2
        Lever radio
        1:12
        Soil sample
        30cm2 x 2cm(H)
        Maximum horizontal shear force (KN)
        1.2
        Power type
        electric
        Variable speed
        0.02,0.8,2.4mm/minute
        The displacement of the motor
        0.2mm/r
        Motor speed
        0.1,0.8.2.4r/min
        Voltage
        AC220V 50HZ
