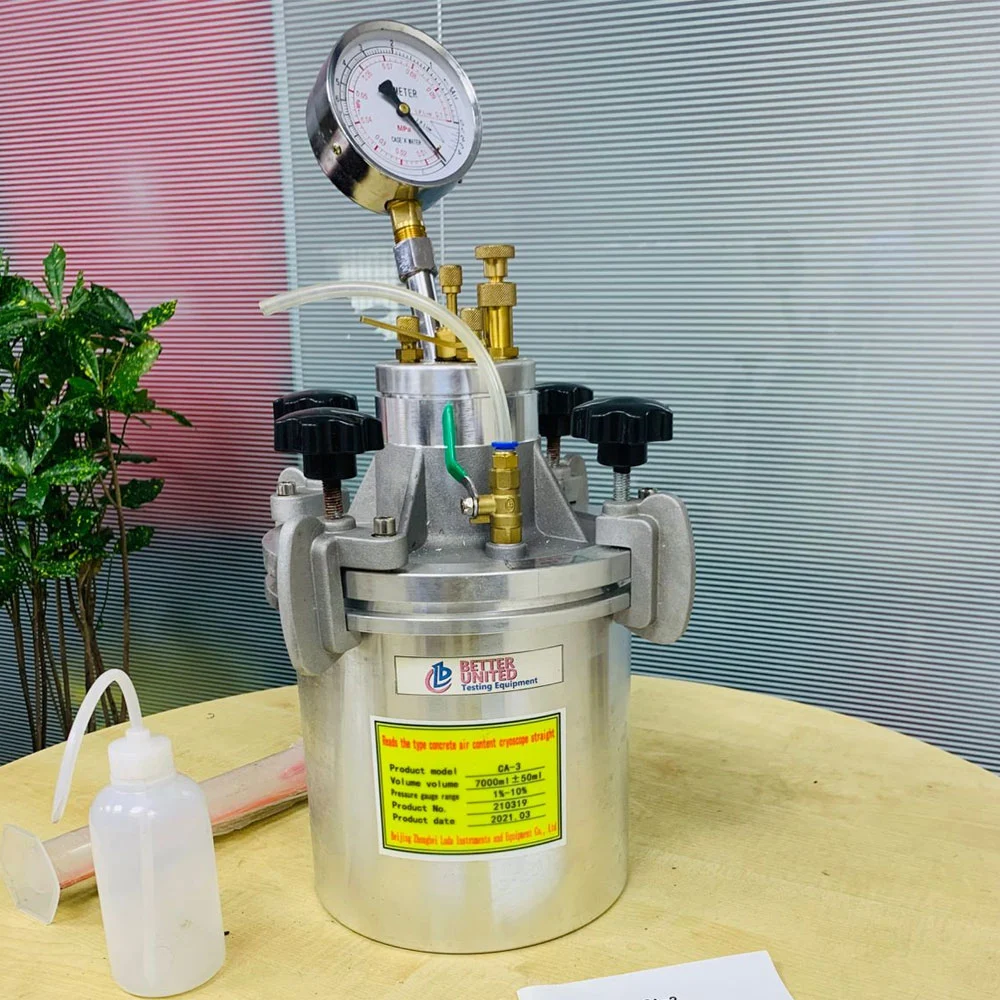

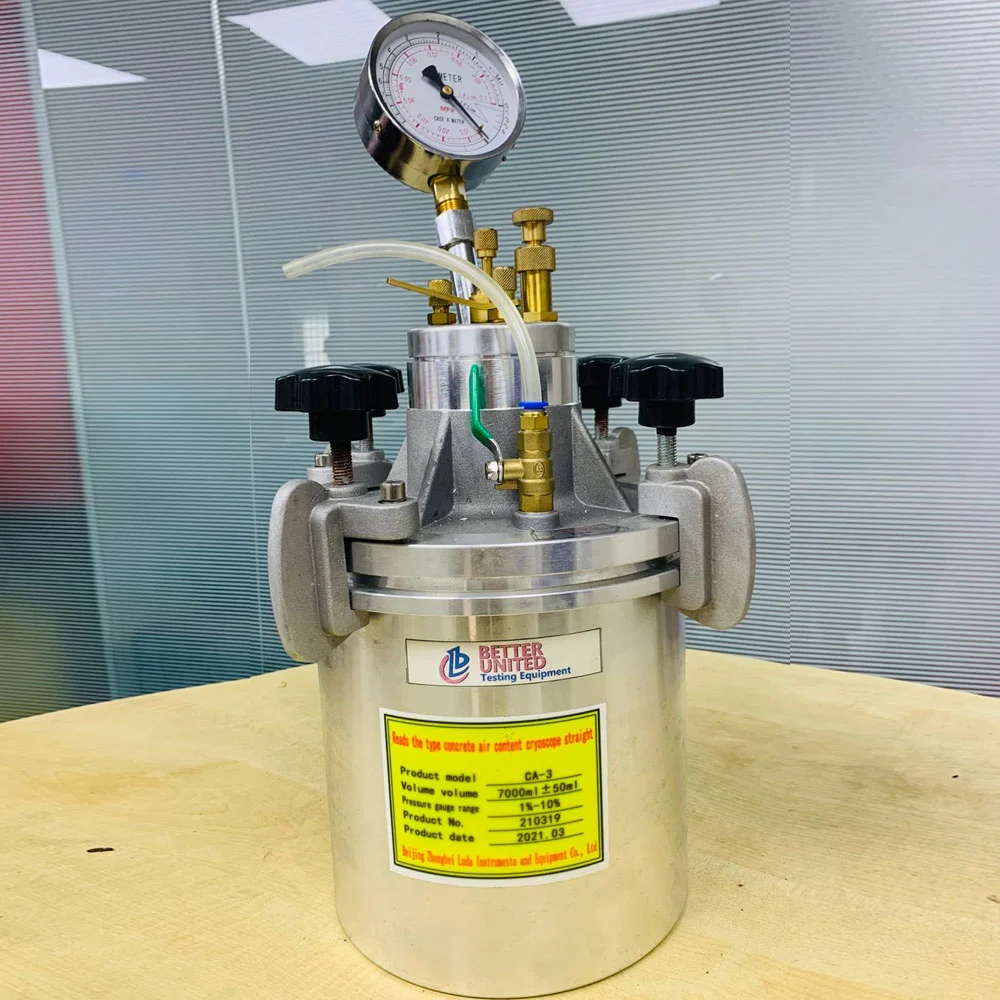

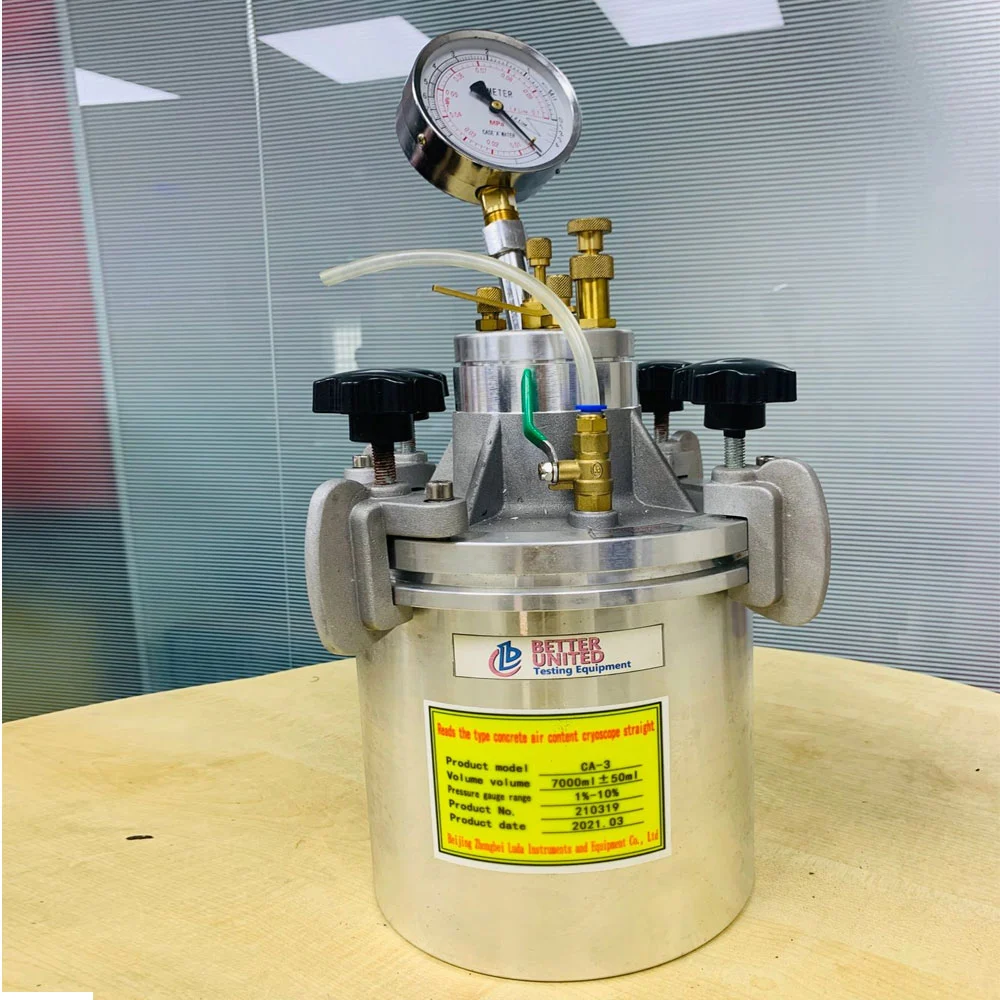

7L Fresh Concrete Air Content Entrainment Meter, Air Entrainment Test Machine
Used to measure the air content in fresh mix concrete technical parameters
|Â standard||EN 12350-7, ASTM C231 Type B, AASHTO T152|
|Air Content Range||Â 0-100%|
|Gauge Graduations||Â 0.1% up to 6%, 0.2% from 6 to 10%|
|Material||Â Aluminum cast|
|Maximum aggregate size||Â â‰¤40mm|
|Â Packing size||Â 660x450x320 mm|
Consist of :
|Â Air Meter Kit||Â 1PC|
|Â Strike off Bar||Â 1PC|
|Â BrassÂ Calibration Vessel||Â 1PC|
|Â Rubber Teats||Â 1PC|
|Â Tamping Rod||Â 1PC|
|Â Plastic Portable Case||Â 1PC|
Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
III. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.
