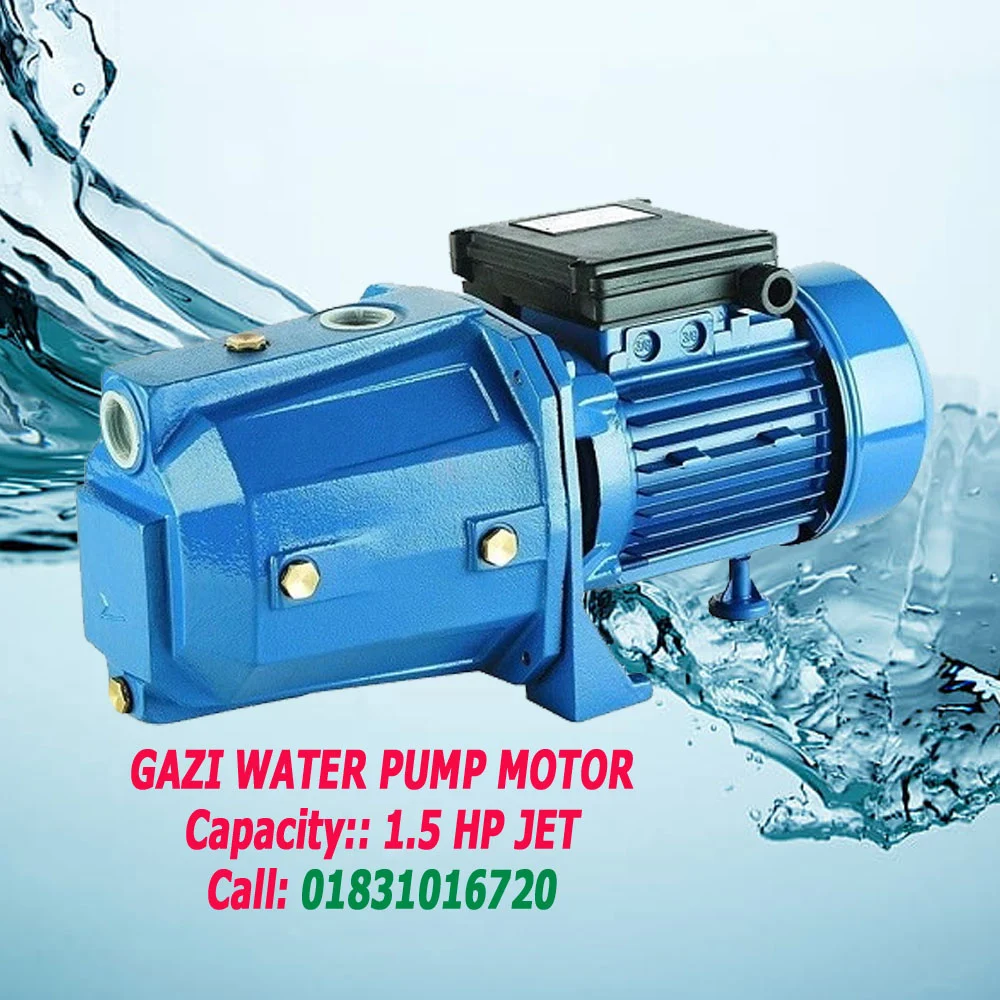

GAZI WATER PUMP MOTOR 1.5 HP JET Supplier in Bangladesh
৳ 15,520.00
GAZI WATER PUMP MOTOR
- Capacity: 1.5 HP -JET
- Brand: Gazi
- Supplier in Bangladesh
Gazi Water Pump 1.5 HP, Model No: TJSW-3CL, Self-Priming Jet Pump. 1.5 HP JET PUMP POWER: 1.5HP, SUCTION POWER: 50-20 Meters = 164 feet, SUCTION LINE: 1.25″, DELIVERY LINE: 1″. WATER DELIVERY:10-120 Ltr/min.
USAGE: Tube well, Washer Line, Building Curing Work, 2nd Floor, 3rd Floor, USES -BRASS IMPELLER self-priming JET pumps of new and compact design incorporating a special (patented) priming system that allows for excellent performance. Suitable to handle clean or slightly cloudy, non-corrosive water not exceeding 50° C. Possibility of sucking from a depth of 9 meters priming well even in presence of water with gas bubbles, It is recommended to install a foot valve or gate valve on suction inlet. PUMP SIDE -Cast-iron pump body and bracket, high quality mechanical seal, Stainless steel shaft.
ELECTRIC MOTOR -Heavy duty, continuous service, induction motor built to IEC 2-3 issue I-1974 ref. 355 regulations. Built-in overload motor protector up to 1 HP. Protection according to IP44 Standards. Sile according to UNEL-MEC specifications.
PRODUCTION STANDARDS -The pump side is in cast-iron and is built to ISO 2548 regulations. The motor to IEC (International Electrotechnical Commission) specifications.
QUALITY CONTROL -All our pumps are individually factory tested according to UNI 6871-71P cat III Standards.
VOLTAGE –
Single phase: 220V Maximum allowable deviation from the rated voltage ±5%
(Other voltages available on demand).
FREQUENCY -50 Hz.
WARRANTY PERIOD -24 months.
